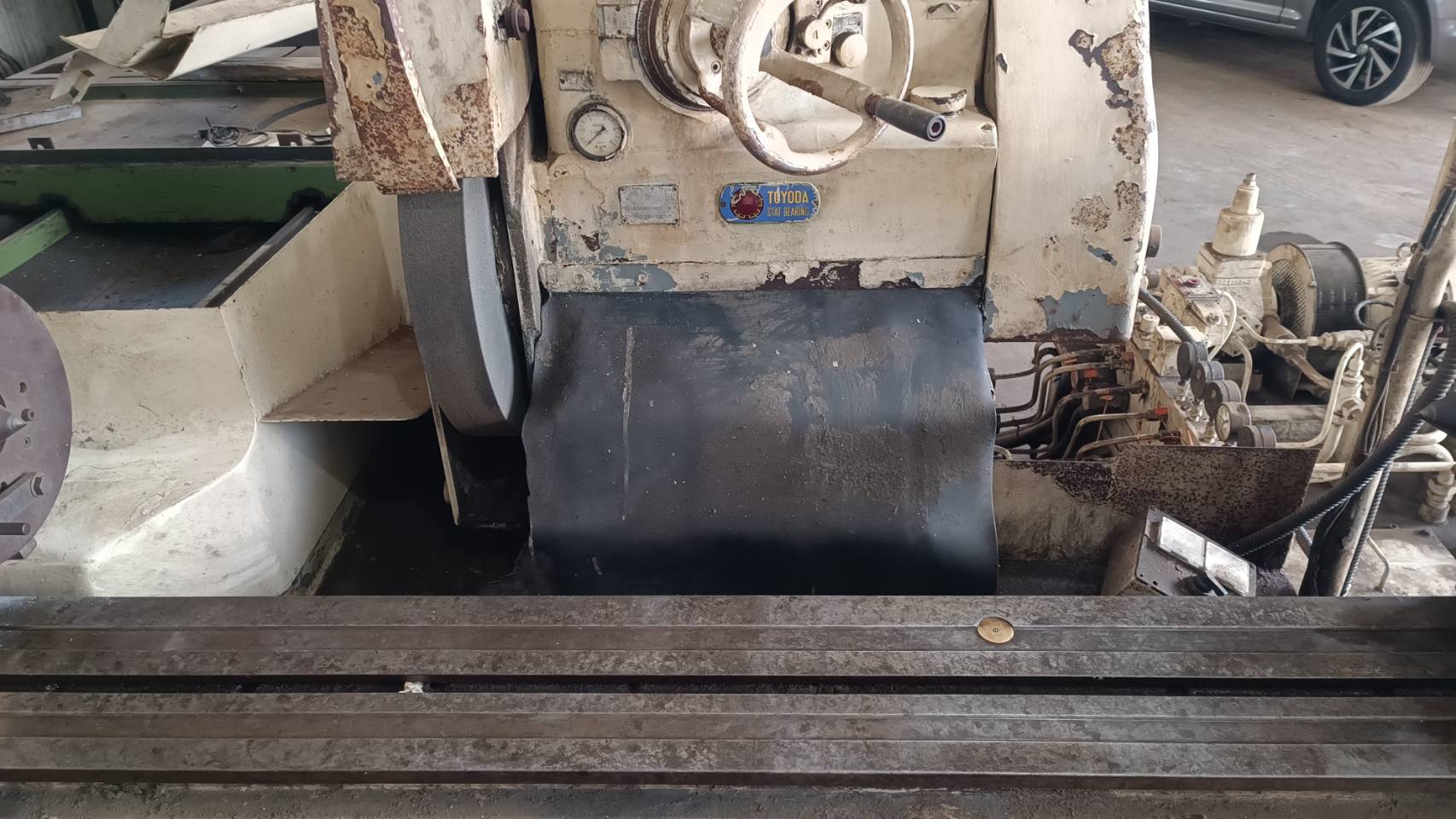

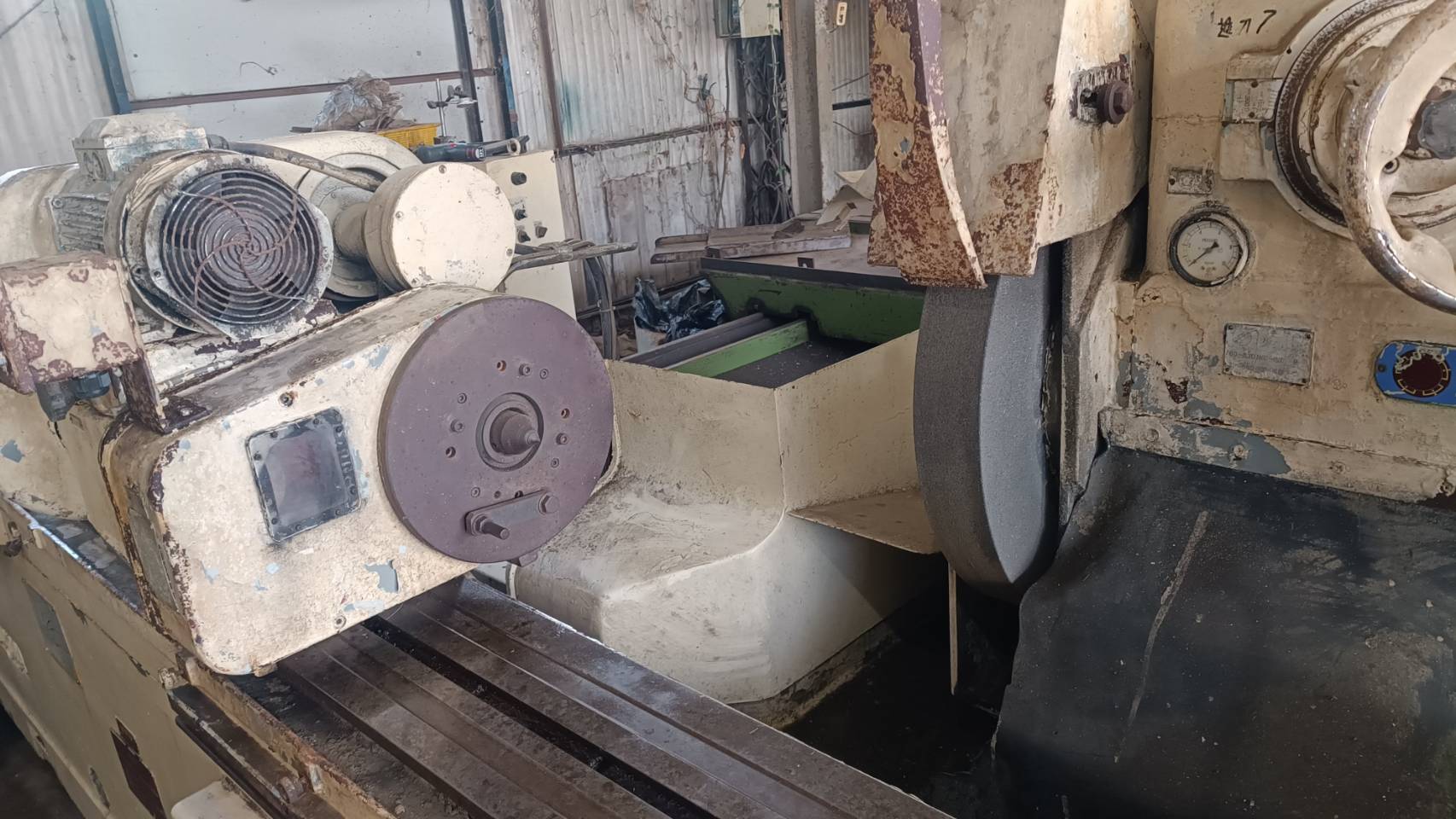

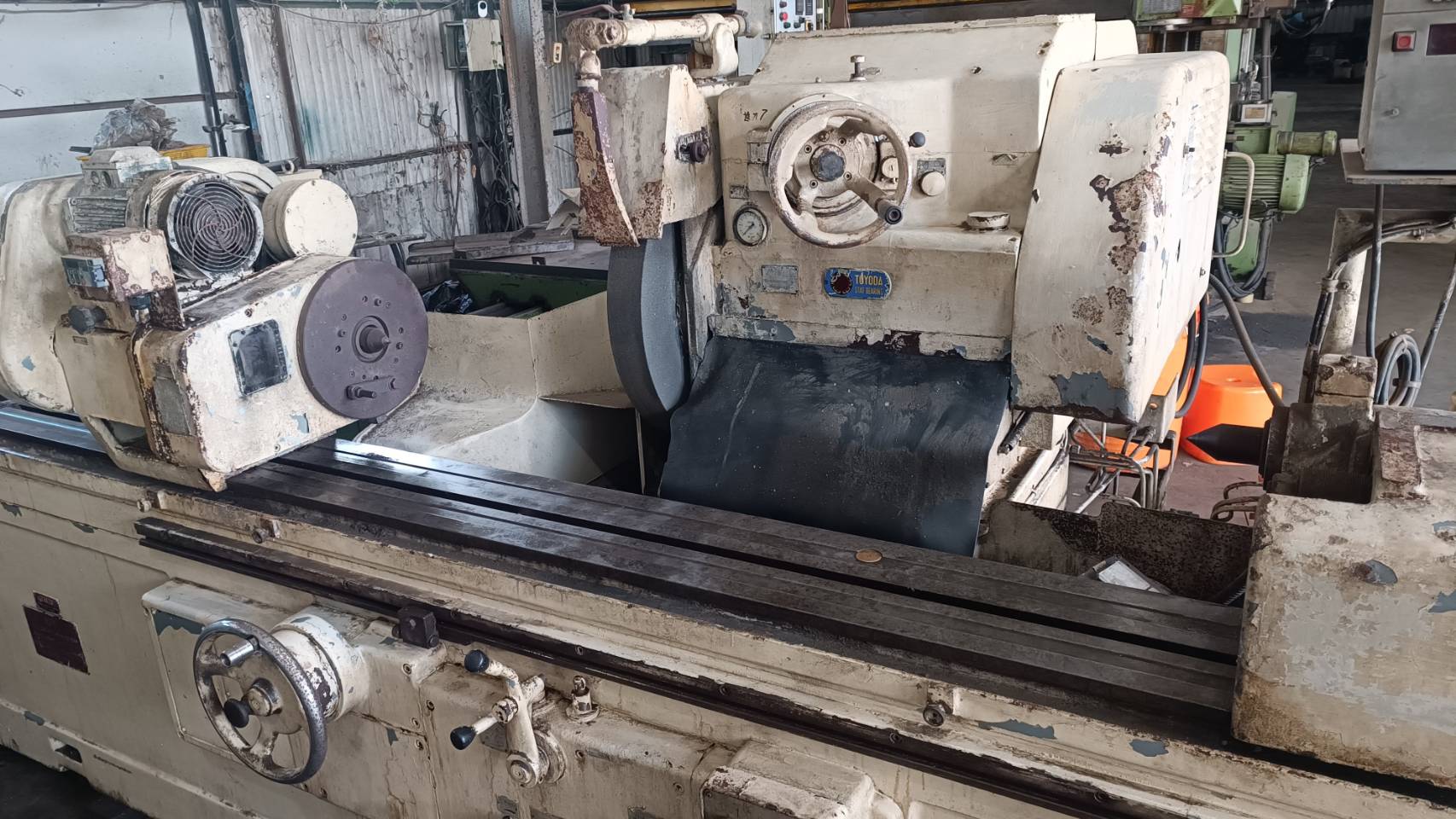

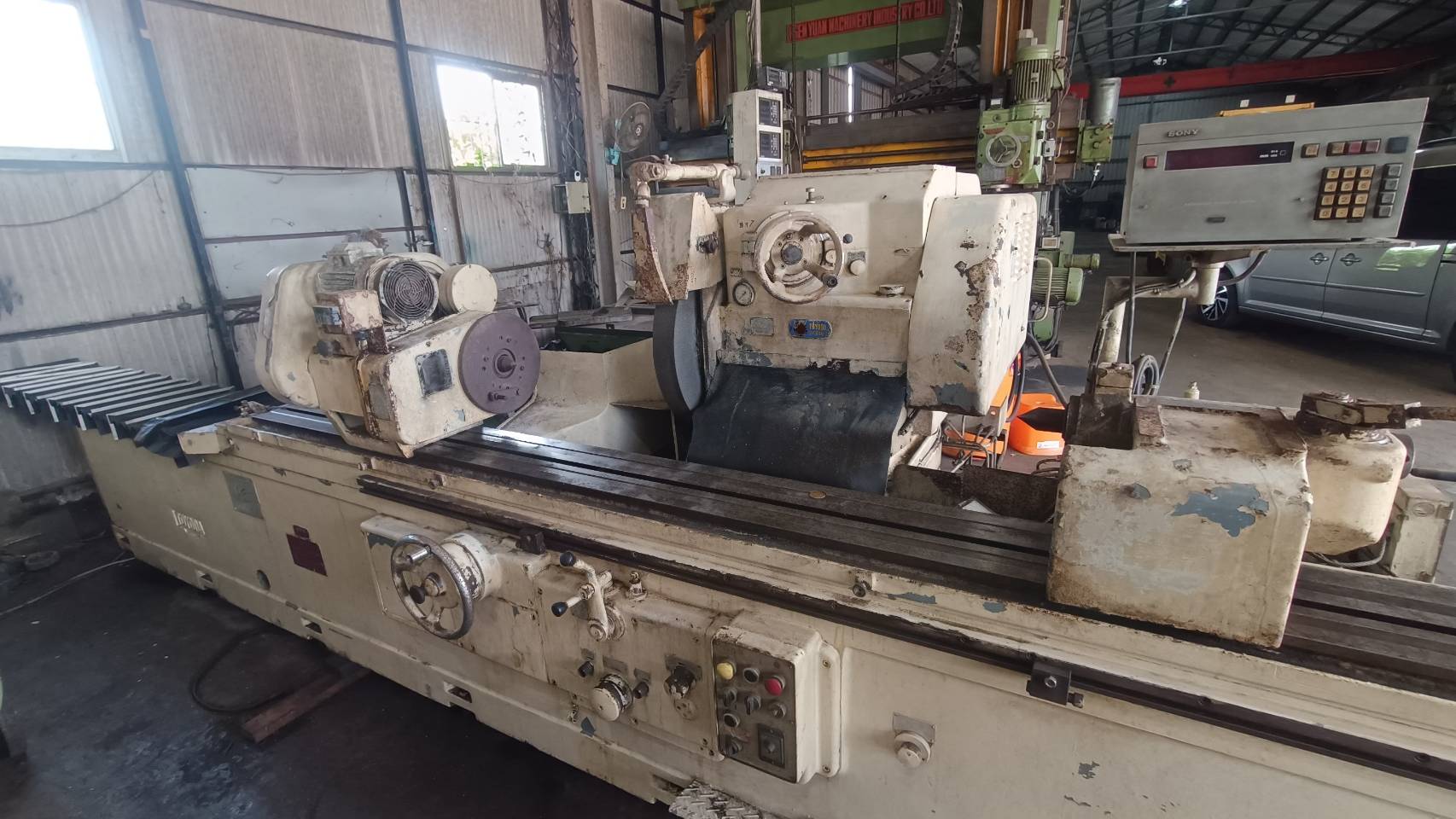

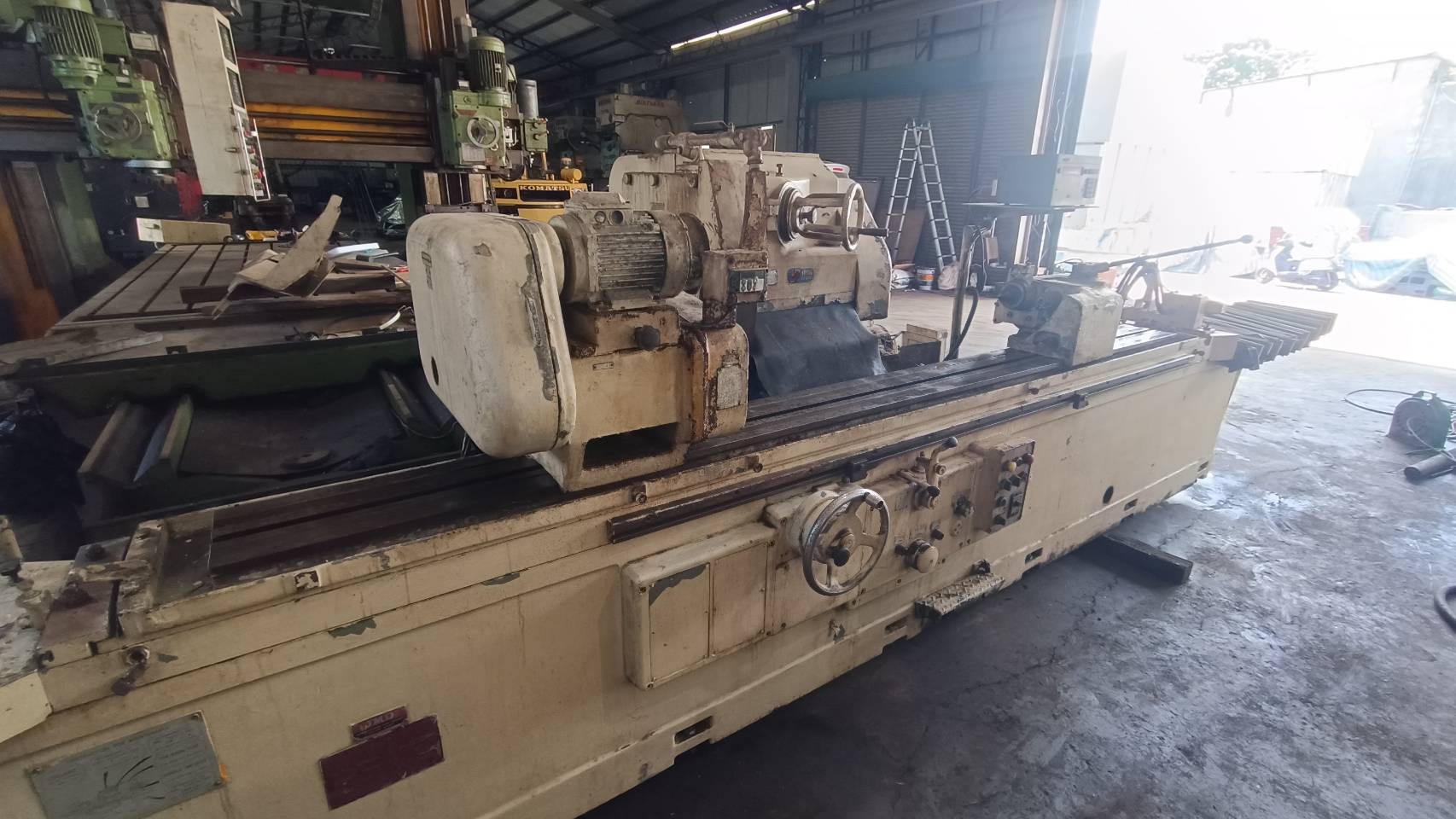

傳統外徑磨床 Toyota

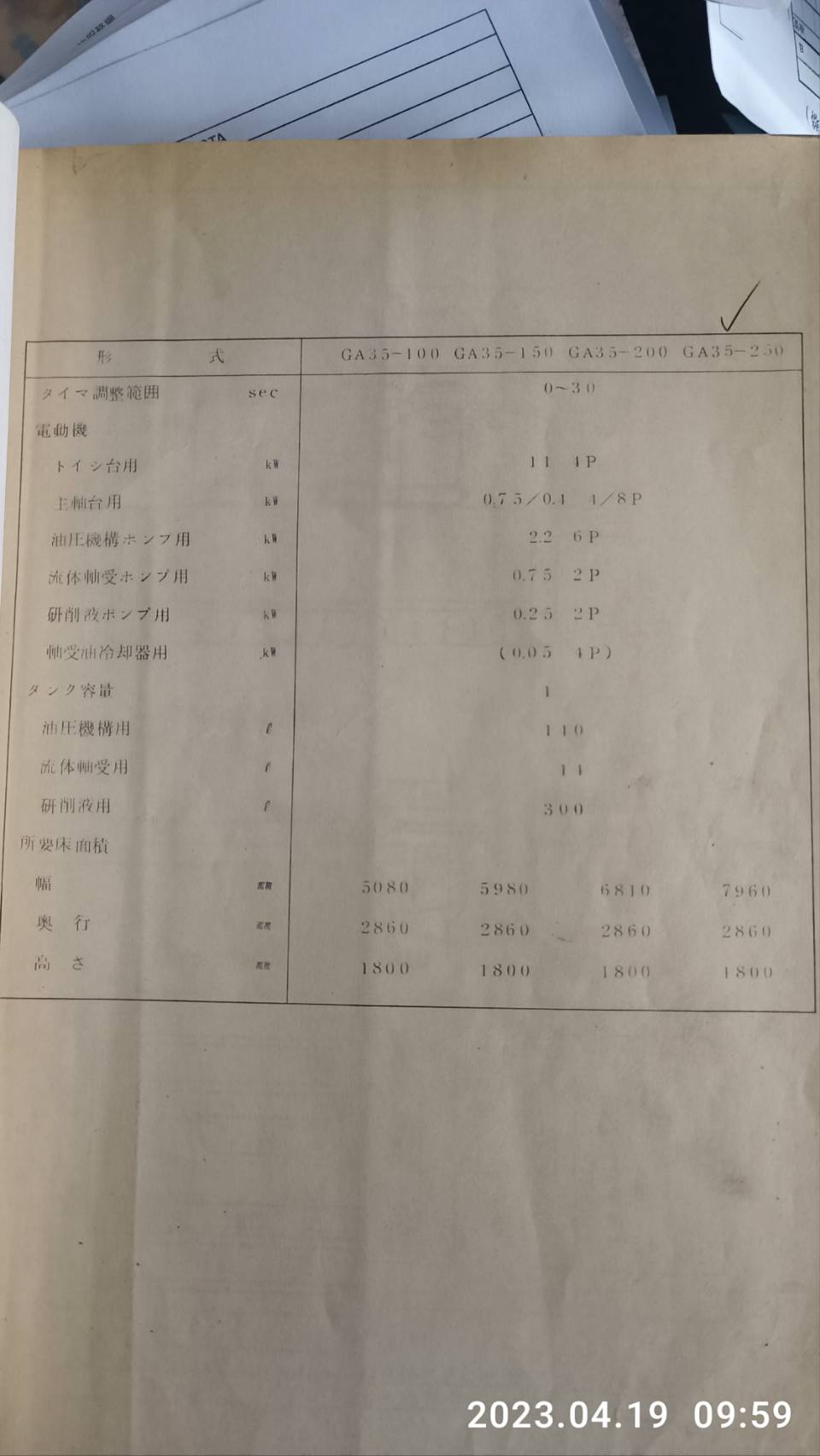

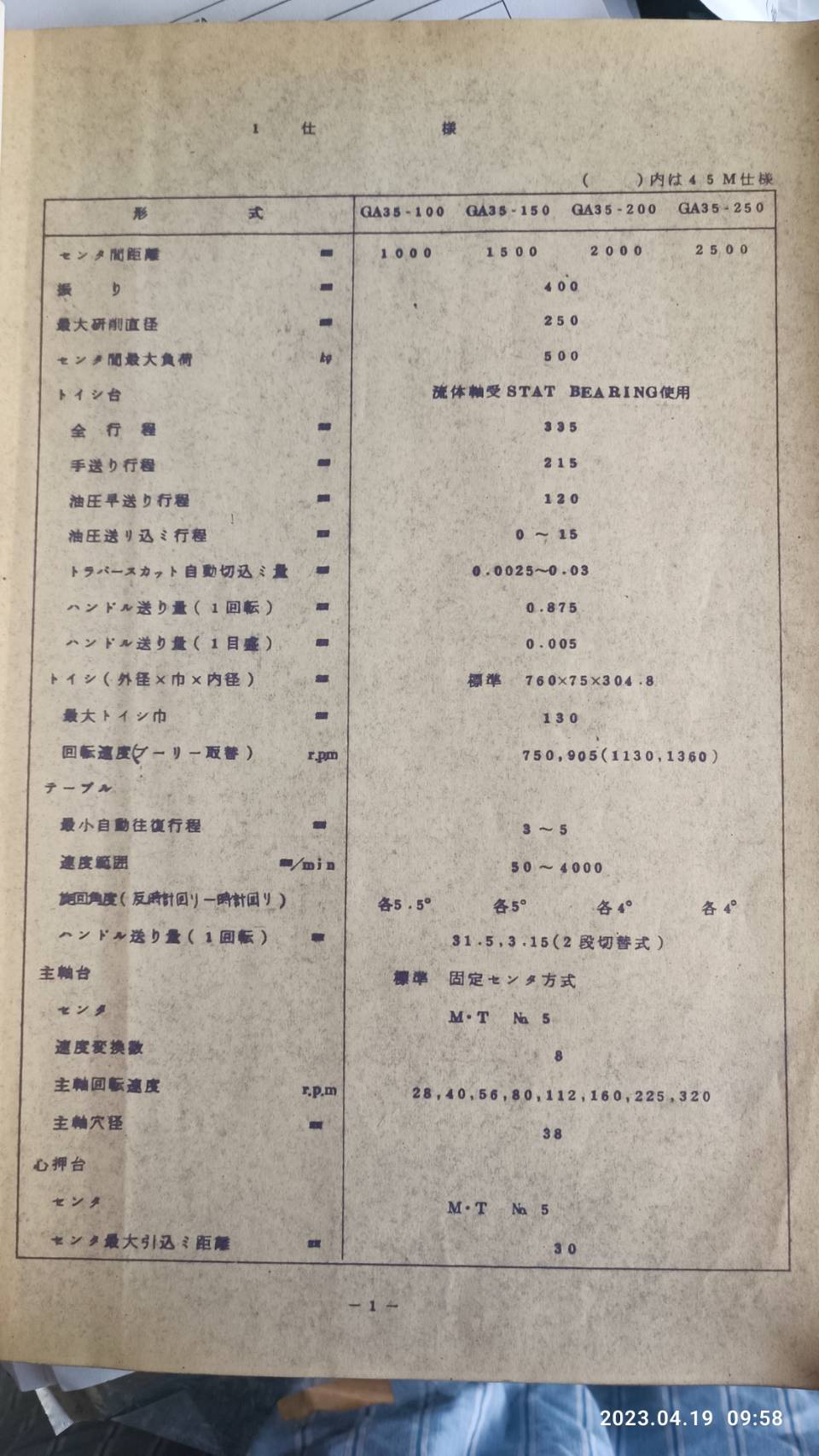

規格表
| 廠牌 | Brand | Toyota |
|---|---|---|
| 型號 | Type | GA35-250 |
| 頂芯間距離 | Distance between centers | 2,500mm |
| 最大加工直徑 | Max. FACING Dia. | 250mm |
| 最大荷重 | Max. Weight between centers | 500KG |
| 主軸轉速 | Spindle speed | 28~320RPM |
| 頂芯尺寸 | Center size | M.T NO.5 |
| 砂輪尺寸 | Wheel size | Ø760X75w x Ø304.8mm |
| 砂輪轉速 | Wheel speed | 750~1,360RPM |
